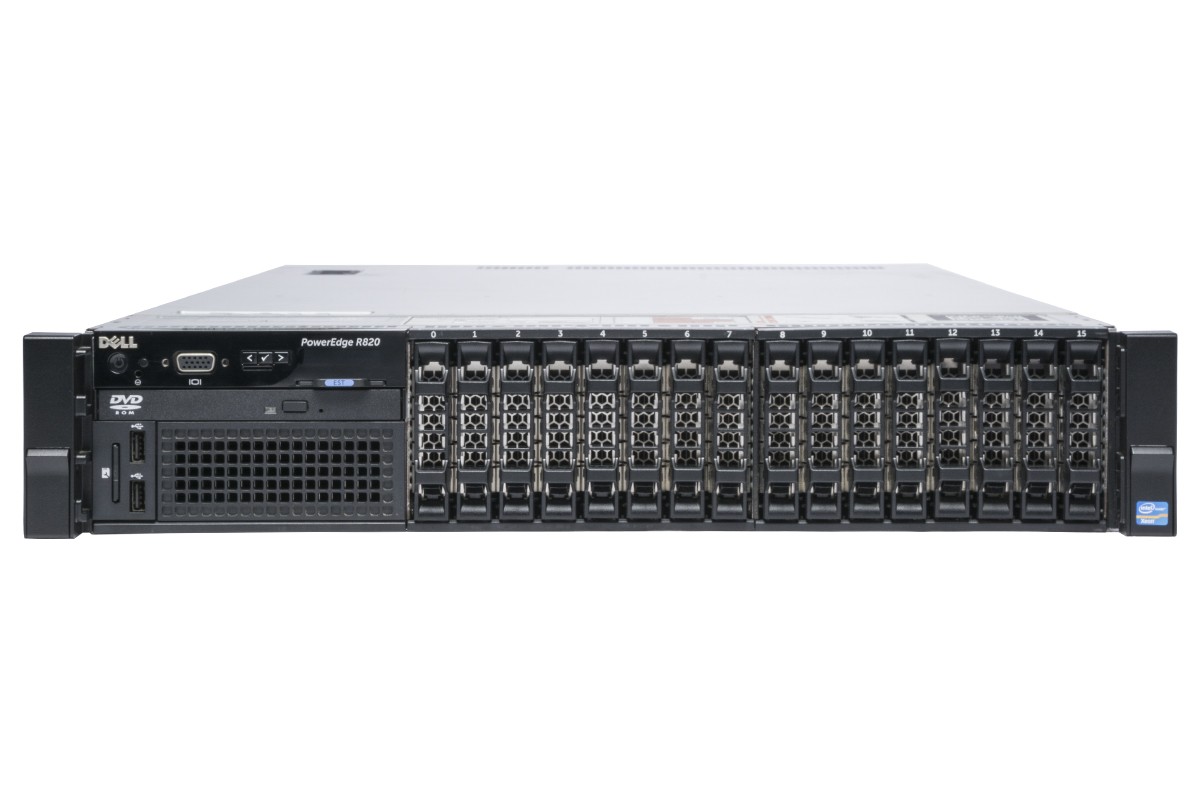

SERVER DELL POWEREDGE R820 E5-4603 V2 - 2.20GHz


RACK: 2U
CPU: Intel® Xeon® E5
RAM:
Số lượng:
Giá bán: 0 VND

SERVER DELL POWEREDGE R820 E5-4603 V2 CHÍNH HÃNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 v2

  • 2x Intel® Xeon® E5-4603 v2 2.20GHz, 10M Cache, 6.4GT/s QPI, No Turbo, 4 Core, 95W, Max Mem 1333MHz
  • 16GB( 2 x 8GB ) RDIMM, 1600MT/s, Low Volt, Dual Rank, x8 Data Width
  • Hard Drive : None 2.5-inch
  • PERC H710 Integrated RAID Controller, 512MB NV Cache, Mini-Type (RAID 0, 1, 5, 10)
  • Broadcom 5720 QP 1Gb Network Daughter Card
  • 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
  • Dual, Hot-plug, Redundant Power Supply (1+1), 750W
  • Rack 2U, Dell Friction Rail Kit
  • Warranty : 3 Year ProSupport and NBD On-site Service

MÁY CHỦ SERVER DELL POWEREDGE R820 E5-4603 V2

Processor

  • Intel® Xeon® processor E5-4600 product family

    Processor sockets:
    4

    Internal interconnect:
    2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s

    Cache:
    2.5MB per core; core options: 4, 6, 8

    Form factor:
    2U rack

Operating System

  • Microsoft® Windows Server® 2012
    Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux®
    Virtualization options:
    Citrix® XenServer®
    VMware® vSphere® ESXi ™
    Red Hat Enterprise Virtualization®

Chipset

  • Intel C602

Memory1

  • Up to 3TB (48 DIMM slots) 4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s

Storage

  • Maximum internal storage
    16TB

Drive Bays

  • Up to sixteen 2.5” hot-plug SAS, SATA, or SSD

    Hard drives:
    Hot-plug hard drive options:
    2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512e (15K)
    Self-Encrypting drives available

Slots

  • 7 PCIe slots:
    Two x16 half-length, full-height
    One x8 half-length, full-height
    Three x8 half-length, half-height
    One x8 half-length, full-height for the RAID controller

RAID Controllers

  • Internal controllers:
    PERC H310
    PERC H710
    PERC H710P
    External HBAs (RAID):
    PERC H810
    External HBAs (non-RAID):
    6Gbps SAS HBA

Communications

  • Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
    Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
    Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
    Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
    Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
    Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)

Power

  • Titanium efficiency, hot-plug redundant 750W power supply
    Platinum efficiency, hot-plug redundant 750W or 1100W power supplies
    Auto-ranging power supplies

Availability

  • High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug
    redundant fans; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support;
    ENERGY STAR® compliant, extended power range; Switch Agnostic Partitioning (SWAP)

Management

  • Remote management:
    iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller
    8GB or 16GB vFlash media (upgrade options)

    Systems management:
    IPMI 2.0 compliant
    Dell OpenManage™ Essentials
    Dell OpenManage Power Center
    Dell OpenManage Connections:
    • Dell OpenManage Integration Suite for Microsoft® System Center
    • Dell plug-in for VMware® vCenter™
    • HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support

  • ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
    ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks.
