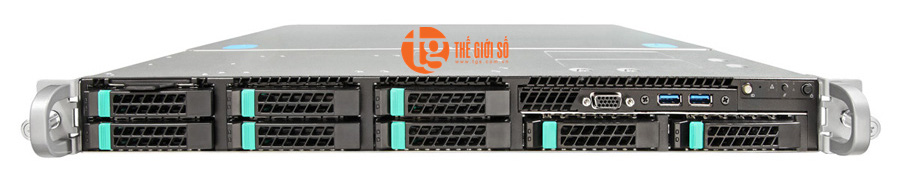

MÁY CHỦ SERVER INTEL R1304GZ4GC E5-2620v2

MÁY CHỦ SERVER INTEL R1304GZ4GC E5-2620v2

Processors:  Intel® Xeon® Processor E5-2620 v2 (15M Cache, 2.10 GHz)
                            (support Dual Intel® Xeon® Processor E5-2600 v2 Family Socket R)
Memory: 8GB DDR3 1333  ECC Registered Server Memory(24dimm slots support DDR3 ECC UDIMM                                   1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866 With quad channel)
Chip Set: Intel® C602 Chipset (Intel® BD82C602 PCH)
Hard Drives: SSD Intel 530 Series 120GB MLC SATA 6Gb/s 2.5'' (SSDSC2BW120A4K5)
Drive Bays: Support 8 sata/sas 6gbps
Raid Controller: Onboard 0,1
Network Lan: Quad 1 GbE LAN
Slots: 2 PCI Express* 3.0 x8 personality modules, 2 PCI Express 3.0 x24 superslots (6 PCI Express 3.0 x8 or 2                PCI Express 3.0 x16 + 2 PCI Express 3.0 x8)
Risers:   2 Risers with 1 x16 PCIe* FHHL slot on each
Module Upgrades: Intel® I/O Module, Intel® Storage I/O Module, Intel® Remote Management Module 4
Intel remote: 1 Intel® Remote Management Module 4
Graphics: Onboard
Power Supply: 2/2 750W AC Redundant PSU (Platinum Efficiency)
Form Factor: 1U rack: 1.75” x 16.93” x 27.95”
Rail Kit:  YES



Specifications
+ Essentials
- Memory Specifications
Memory Types    DDR3 ECC UDIMM 1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866
Max # of DIMMs    24
Max Memory Size (dependent on memory type)    768 GB
- Graphics Specifications
Integrated Graphics ‡    Yes
- Expansion Options
PCIe x16 Gen 3    2
Connector for Intel® I/O Expansion Module x8 Gen 3    1
Connector for Intel® Integrated RAID Module    1
- I/O Specifications
# of USB Ports    6
Total # of SATA Ports    6
RAID Configuration    Software RAID 1,0,10 optional 5
# of Serial Ports    2
Integrated LAN    4x 1GbE
# of LAN Ports    4
Optical Drive Support    Yes
Firewire    Yes
Integrated SAS Ports    0
Embedded USB (eUSB) Solid State Drive Option    Yes
Integrated InfiniBand*    No
- Package Specifications
Max CPU Configuration    2
- Advanced Technologies
Intel® Remote Management Module Support    Yes
Integrated BMC with IPMI    IPMI 2.0
TPM Version    1.2
Intel® Node Manager    Yes
Intel® On-Demand Redundant Power    Yes
Intel® Advanced Management Technology    Yes
Intel® Server Customization Technology    Yes
Intel® Build Assurance Technology    Yes
Intel® Efficient Power Technology    Yes
Intel® Quiet Thermal Technology    Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡    Yes
Intel® Matrix Storage Technology    No
Intel® Rapid Storage Technology    No
Intel® Rapid Storage Technology enterprise    Yes
