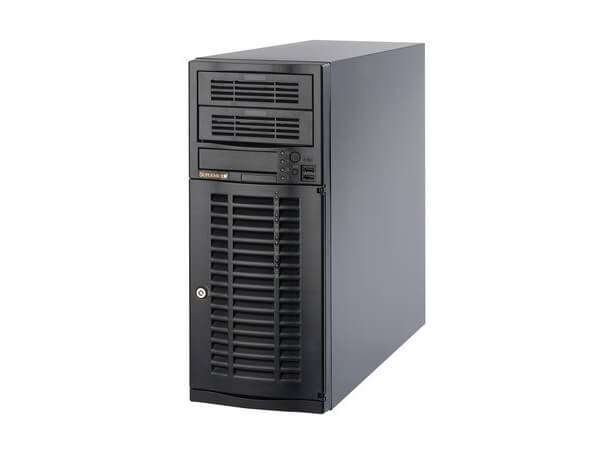

MÁY CHỦ SERVER SUPERMICRO USA TOWER CSE-733T-500B E5-2640 v4

MÁY CHỦ SERVER SUPERMICRO USA TOWER CSE-733T-500B E5-2640 v4

Key Features:
Processor: 1x Intel® Xeon® Processor E5-2640 v4 (25M Cache, 2.4 GHz, 10-core, 8.0GT/s)
Memory: 1x 8GB DDR4-2133 ECC REG
Network Controller: Dual Gigabit Ethernet LAN ports
Raid: Support Raid (0,1,5,10) Windows/ Linux (0,1,10)
Storages: Non HDD
Power: 500W High-efficiency Power Supply
Form Factor: Mid-Tower


SPECIFICATIONS DETAIL:

Product SKUs : Supermicro USA Server Tower CSE-733T-500B E5-2640 v4
Motherboard : X10DRL-i

Processor/Cache.
CPU : Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
Core/Cache : Up to 22 Cores† / Up to 55MB† Cache

System Memory.
Memory Capacity : Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
Memory Type: 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes : RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB. LRDIMM: 64GB, 32GB. 3DS LRDIMM: 128GB

On-Board Devices.
Chipset : Intel® C612 chipset
SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI : Support for Intelligent Platform Management Interface v.2.0. IPMI 2.0 with virtual media over LAN and KVM-over-LAN support.
Network Controllers : Intel® i210 Gigabit Ethernet controller
Graphics : ASPEED AST2400 BMC

Input / Output.
SATA : 10x SATA3 (6Gbps) ports
LAN : 2x RJ45 Gigabit Ethernet LAN ports. 1x RJ45 Dedicated IPMI LAN port
USB : 4x USB 3.0 ports (2 rear + 2 via header); 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Video : 1x VGA port
Serial Port / Header: 2x Fast UART 16550 port / 1 Header
DOM: DOM (Disk on Module) power connector

Expansion Slots.
PCI-Express: 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x16, 1 PCI-E 2.0 x4 (in x8)

Drive Bays.
Hot-swap : 4x 3.5" Hot-swap drive bays
Peripheral Bay(s): 2x 5.25" peripheral drive bay, 1x 3.5" bay

Power Supply.
500W AC power supply w/ PFC

Chassis.
Form Factor : Mid-Tower
Model : CSE-733T-500B
